Removing wiper blades requires lifting the wiper arm away from the windscreen, locating the release mechanism, and gently sliding or clicking the blade assembly off the arm. Most modern vehicles use hook, pin, or bayonet-style connections that can be removed without tools in under 15 minutes.
Wiper blades are essential safety components that ensure clear visibility during adverse weather conditions. Regular replacement keeps your windscreen clean and prevents scratches from worn rubber strips.
Tools and parts required
Before beginning the removal process, gather the necessary items to ensure a smooth and safe blade replacement.
Parts needed:
- New windscreen wipers (vehicle-specific size)
- Replacement connector adapters (if required)
Tools required:
- Clean microfibre cloth
- Soft towel or blanket
- Measuring tape (for blade length verification)
- Owner’s manual for reference
Having the correct replacement blades is crucial, as sizes vary significantly between vehicle models. Check your current blade length before purchasing replacements.
Safety precautions
Always ensure the vehicle is parked on level ground with the engine switched off. Never attempt to remove wiper blades during freezing conditions when they may be frozen to the windscreen.
Place a soft towel on the windscreen beneath the wiper arm to prevent accidental scratches if the arm snaps back. Handle wiper arms gently, as excessive force can damage the spring mechanism or crack the windscreen.
Step-by-step instructions
Step 1: Position the wiper arms
Start your engine and activate the wipers, then switch off the ignition when the blades reach the middle of the windscreen. This service position provides easier access to the blade connections.
Some modern vehicles feature a specific wiper service mode that can be activated through the dashboard controls. Consult your owner’s manual for vehicle-specific procedures.
Step 2: Lift the wiper arm
Carefully lift the wiper arm away from the windscreen until it locks in the upright position. Most arms will stay in place once lifted, but support them gently to prevent sudden movement.
Be cautious not to let the wiper arm snap back onto the glass, as this can cause chips or cracks. The arm should move smoothly without resistance.
Step 3: Locate the release mechanism
Examine where the wiper blade connects to the arm. Look for a plastic tab, clip, or button that secures the blade assembly. Common connection types include hook-style, pin-type, and bayonet fittings.
Different manufacturers use varying connection systems. Hook-style connections feature a small plastic tab, whilst pin-type systems have a release button on the connector.
Professional tip: Take a photo of the connection before removal to ensure correct reassembly orientation.

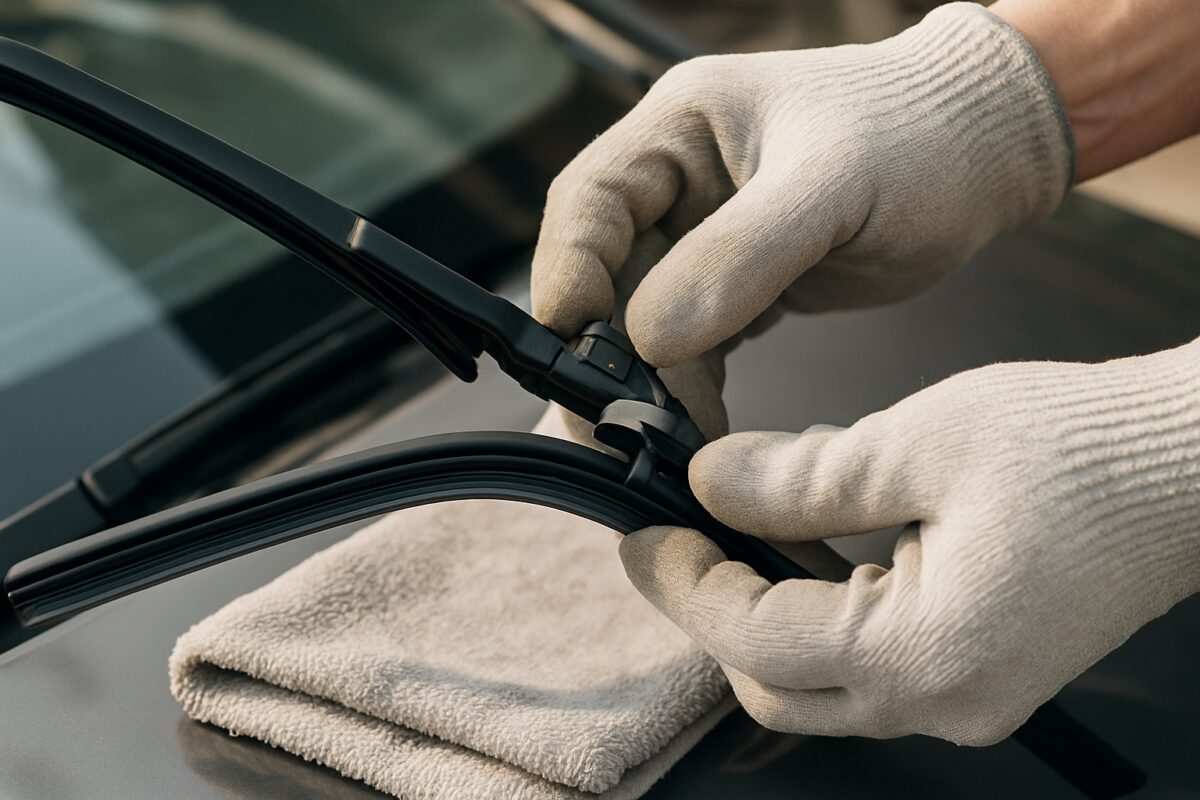

Step 4: Release the old blade
Press the release tab or button whilst gently pulling the blade assembly away from the wiper arm. For hook-style connections, slide the blade downwards whilst pressing the tab. Pin-type systems require pressing the button and pulling straight out.
Apply steady, gentle pressure rather than forcing the connection. If the blade doesn’t release easily, double-check you’ve located the correct release mechanism.
Step 5: Remove the blade completely
Once the connection is released, slide the entire wiper blade assembly off the arm. Note the orientation and connection type for installing the replacement blade.
Store the old blade safely away from the work area to prevent accidental contact with the windscreen or paintwork.
Common mistakes to avoid
Many motorists force stuck connections instead of identifying the correct release mechanism. This can damage both the wiper arm and blade assembly, leading to expensive repairs.
Never allow the wiper arm to snap back onto the bare windscreen. The metal arm can chip or crack the glass, requiring costly replacement. Always place a protective towel beneath the work area.
Avoid removing wiper blades in freezing conditions when ice may have bonded the rubber to the windscreen. Wait for warmer weather or use the vehicle’s heating system to defrost the area first.
Don’t assume all wiper blades use the same connection system. Modern vehicles employ various attachment methods, so examine each blade individually before attempting removal.
Expert advice: Clean the wiper arm connection point with a damp cloth after blade removal to ensure proper new blade seating.
When should you replace wiper blades?
Replace wiper blades every 12-18 months or when they show signs of wear. Cracked rubber, missing pieces, or streaking across the windscreen indicate immediate replacement needs.
Seasonal changes affect blade performance significantly. Winter salt and summer heat accelerate rubber deterioration, whilst autumn leaves and debris can damage the blade edge.
If your wipers chatter, skip, or leave streaks during operation, new replacement blades will restore clear visibility. Don’t wait until complete failure, as poor visibility compromises road safety.
Related maintenance you can do at the same time
While replacing wiper blades, consider checking the washer fluid reservoir and topping up if necessary. Clean washer fluid ensures optimal cleaning performance.
Inspect the washer jets for blockages and clear any debris with a fine wire or compressed air. Blocked jets reduce cleaning effectiveness and waste washer fluid.
Check the washer pump operation by activating the system. If the pump struggles or fails to deliver fluid, replacement may be necessary.
Consider upgrading to premium wiper blades with enhanced rubber compounds or aerodynamic designs for improved performance and longer service life.
Frequently asked questions
How often should I replace my wiper blades?
Replace wiper blades every 12-18 months or when they streak, chatter, or show visible damage like cracks or missing rubber pieces.
Can I remove wiper blades without tools?
Yes, most modern wiper blades use tool-free connection systems with plastic tabs or buttons that can be released by hand.
What if my wiper blade won’t come off?
Check you’ve identified the correct release mechanism and ensure the blade isn’t frozen to the windscreen. Apply gentle, steady pressure rather than forcing.
Are all wiper blade connections the same?
No, different manufacturers use various connection types including hook, pin, bayonet, and clip systems. Examine each blade individually before removal.
Should I replace both wiper blades together?
Yes, replace both blades simultaneously to ensure even cleaning performance and prevent unbalanced wear patterns that can damage the windscreen.
Proper wiper blade removal is a straightforward maintenance task that any motorist can master with patience and the right technique. Following these steps ensures safe removal without damaging your vehicle’s wiper system or windscreen. Quality replacement blades from reputable suppliers will maintain optimal visibility and driving safety throughout all weather conditions.
